RedCircle Engine

3D Video Game Engine made with C++ & OpenGL

Welcome to the repository of RedCircle Engine !

RedCircle is a Video Game Engine developed by 2 students from the Video Game Development & Design degree, at CITM (UPC).

About our team

RedCircle engine is developed by:

• Isaac Calvís GitHub
• Aitor Velez GitHub

Main Core Sub-Systems

• Module Scene : Manages all the scene and all ingame components attatched. We can save and load scenes in binary format.

• Hirearchy : Manages all game objects and its properties in game.

• Importer System : We can import models and its textures and convert it into our own file format.

• Ingame Timing : We have a play button to view the game from the main camera.Time mainly affects to our phyisics update.

Phyisics engine

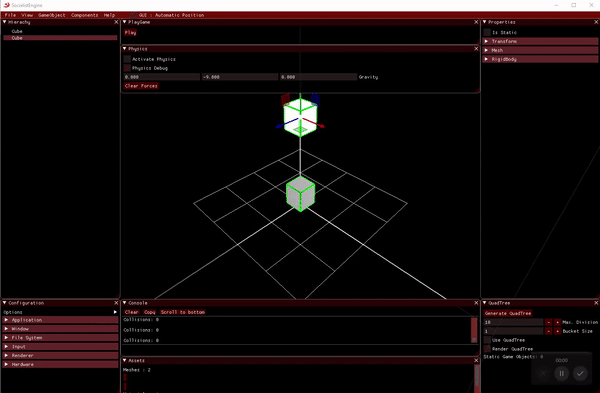

We implemented colliders, rigidbodies and phyisics constrains ,these allows use to have the core parts of a phisics engine. In our engine you are able to test if two objects collide, apply gravity to them, and also apply collider component. In this gif it’ s possible to see two objetcs that have been previously applyied a rigidbody and a collider.

You have a physics panel where:

• Can Activate/ Deactivate physics
• Draw Physics debug
• Modify gravity force
• Clear all rigidbodies forces

Physic Objects properties

Colliders:

• Collider size (for each axis)
• Collider center point
• Type of shape (Cube & Sphere)
• Trigger option
• And also will show with wich objects is colliding

RigidBodies:

• Type of shape (Cube or Sphere)
• You can modifi RigidBody size (for each axis)
• Mass
• Use Gravity
• Clear forces button
• And also will show with wich objects is colliding

Constraints:

• Choose constraint type (P2P, Hinge, Slider)
• Connect Game Object button (click button and then the GO to connect, it will show the name of connected GO)
• BodyA point
• BodyB point
• AxisA point
• AxisB point

Downloads & Release

Source Code Releases

Use Scene

You will find at folder Library/Scenes the file PhysicsScene.sscene, you can load it dragging on the engine or using the load scenes panel. Theres a Sphere with a camera that have a rigidBody, you can move & shot balls. Also you’ll find 2 cubes, one with a RigidBody & another one with a RigidBody & Constraint, choose what constraint you want, the points, and connect them using the button at Constraint properties.

Controls

• WASD: Navigation forward, backward and sides.
• ER: Navigation up and down.
• F: Center the camera in the selected object.
• LeftAlt: Orbital camera around selected game object
• Mouse Wheel: Zoom in, zoom out
• Hold Shift: Camera moves x2 fast
• Del: To delete selected Game Object
• RigthMouse Button to move camera

Guizmos

• Q: Change between Local & Global Mode
• W: Translate
• E: Rotate
• R: Scale

InGame

• WASD: Navigation forward, backward and sides.
• ER: Navigation up and down.
• RigthMouse Button to move camera
• Space to shot a ball

Panels

• Esc: Quit
• F1: Shows configuration panel
• F2: Shows object propierties panel
• F3: Shows console panel
• F4: Shows hirearchy panel
• F5: Shows QuadTree panel
• F6: Shows PlayGame panel
• F7: Shows Asset panel
• F8: Shows Physics panel
• F9: Shows the about panel

Features

• Drag&Drop 3D models & textures from your pc to the GameEngine, it will be added to the project at folder resources
• Create & Delete GameObjects at Hierachy Panel
• Create Primitives &/or add components to game objects (at top bar, gameobjects & components)
• At configuration window can manage render & window options, also draw in wireframe mode or draw imported meshes normals, with a lot more features !
• At properties panel you can modify selected GameObject transform, also see how many triangles have, or the texture associated at Material componentç
• Create QuadTree with static GameObjects
• Drag & Drop function at Hierachy Panel
• Save/ Load Scenes

Video

Used Tools & libraries

Tools

• Visual Studio 2017

Libraries

• SDL
• OpenGL
• Glew
• Assimp
• DevIL
• Imgui
• MathGeoLib
• Parson
• MMGR
• PCG Random
• Par Shapes
• PhysFS
• ImGuizmo
• BulletPhysics
